How to Build a Custom Weather Module for Waybar

If you are customizing your Linux desktop environment, perhaps using a window manager like Hyprland or Sway, you are likely using Waybar. While Waybar has many great built-in modules, sometimes you need something lighter or more specific than the defaults.

One common request we see is a simple weather display. Instead of relying on heavy external programs, we can build a highly efficient custom module using a basic Bash script and the free OpenWeatherMap API.

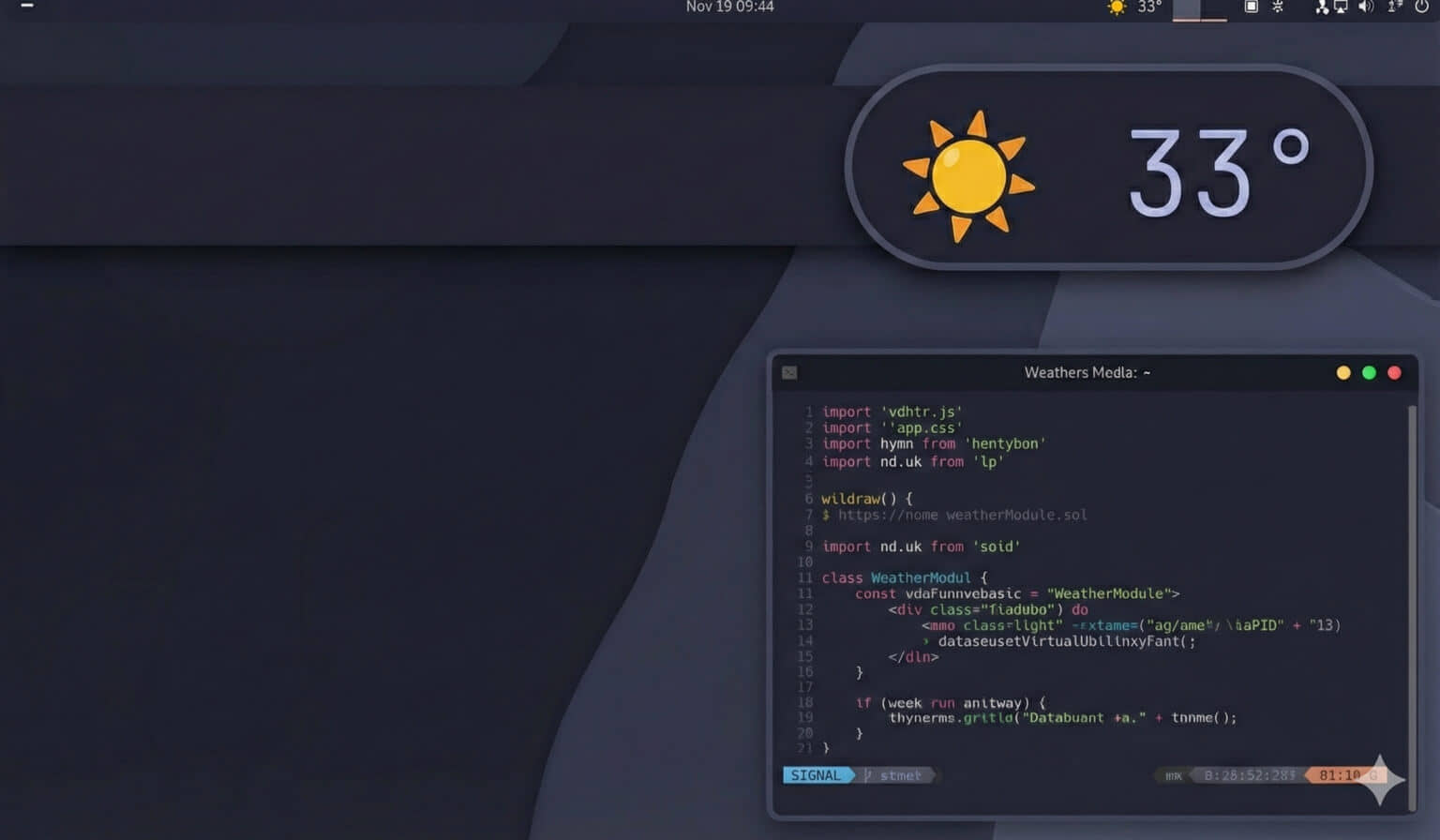

By the end of this guide, you will have a clean weather module on your bar showing the current temperature and an emoji icon matching the current conditions, like this: ☀️ 33°F.

What, are you not jammin’ to the 80s also?

Prerequisites

Before we begin, ensure you have the necessary tools installed on your system. We need a way to fetch data (curl) and a way to parse JSON data (jq).

On Arch Linux:

sudo pacman -S curl jq

On Debian/Ubuntu based systems:

sudo apt install curl jq

Step 1: Get Your OpenWeatherMap API Key

To get weather data, we need an API key.

1. Go to OpenWeatherMap.org and sign up for a free account.
2. Navigate to your API Keys tab and generate a new key. Note: It can take 10–30 minutes for a new key to become active.
3. In the meantime head over to LatLong.net and search for your city on their website. You will need the Latitude and Longitude from the URL for the script below.

Step 2: Create the Weather Script

We need a script that fetches the raw weather data and formats it into JSON that Waybar understands. Waybar expects a JSON output containing at least a "text" field (what shows on the bar) and optionally a "tooltip" field (what shows when you hover).

Create a new directory for your scripts if you haven’t already, and create the file (use your dotfiles instead if you prefer):

mkdir -p ~/.config/waybar/scripts
touch ~/.config/waybar/scripts/weather.sh
chmod +x ~/.config/waybar/scripts/weather.sh

Open weather.sh in your text editor and paste the following script. Be sure to update the Configuration section at the top with your API key and coordinates.

#!/bin/bash

# --- CONFIGURATION ---
API_KEY="YOUR_ACTUAL_API_KEY_HERE" # Paste your key here
LAT="40.712776"  # Replace with your Latitude
LON="-74.005974" # Replace with your Longitude
UNITS="imperial" # Use "metric" for Celsius, "imperial" for Fahrenheit
# ---------------------

# Validate configuration
if [ -z "$LAT" ] || [ -z "$LON" ] || [ -z "$UNITS" ] || [ -z "$API_KEY" ]; then
    echo "Config missing"
    exit 1
fi

# Fetch the weather data
RESPONSE=$(curl -s "[https://api.openweathermap.org/data/2.5/weather?lat=$](https://api.openweathermap.org/data/2.5/weather?lat=$){LAT}&lon=${LON}&appid=${API_KEY}&units=${UNITS}")

# Check if curl failed to get a response
if [ -z "$RESPONSE" ]; then
    echo "No connection"
    exit 1
fi

# 1. Get the Temperature
# We use jq's built-in 'round' function to avoid ugly decimals (e.g., 71.6°F becomes 72°F)
TEMP=$(echo "$RESPONSE" | jq '.main.temp | round')

# 2. Get the Description (for the tooltip)
DESC=$(echo "$RESPONSE" | jq -r '.weather[0].description')

# 3. Get the Icon Code and map it to an emoji
ICON_CODE=$(echo "$RESPONSE" | jq -r '.weather[0].icon')

case $ICON_CODE in
    "01d") ICON="☀️";;  # Clear sky day
    "01n") ICON="🌙";;  # Clear sky night
    "02d") ICON="⛅";;  # Few clouds day
    "02n") ICON="☁️";;  # Few clouds night
    "03d"|"03n") ICON="☁️";; # Scattered clouds
    "04d"|"04n") ICON="☁️";; # Broken clouds
    "09d"|"09n") ICON="🌧️";; # Shower rain
    "10d") ICON="🌦️";; # Rain day
    "10n") ICON="🌧️";; # Rain night
    "11d"|"11n") ICON="⛈️";; # Thunderstorm
    "13d"|"13n") ICON="❄️";; # Snow
    "50d"|"50n") ICON="🌫️";; # Mist
    *) ICON="❓";;      # Default
esac

# Determine unit label
if [ "$UNITS" = "metric" ]; then
    LABEL="°C"
else
    LABEL="°F"
fi

# Final JSON output for Waybar
echo "{\"text\": \"${ICON} ${TEMP}${LABEL}\", \"tooltip\": \"${DESC}\"}"

Test the Script

Before moving to Waybar configurations, run the script manually in your terminal to ensure it works:

~/.config/waybar/scripts/weather.sh

You should see an output similar to this: {"text": "☀️ 72°F", "tooltip": "clear sky"}

Step 3: Configure Waybar

Now we need to tell Waybar how to use this script. Open your main configuration file (usually ~/.config/waybar/config or config.jsonc).

Add the following block anywhere in your module definitions.

"custom/weather": {
    "format": "{}",
    "interval": 600, // Update every 10 minutes (600 seconds)
    "exec": "~/.config/waybar/scripts/weather.sh", # or your dotfiles folder if you use stow
    "return-type": "json",
}

Step 4: Add the Module to Your Layout

Simply defining the module doesn’t make it appear. You must add it to your layout arrays (modules-left, modules-center, or modules-right).

Find where you want it to appear in your config.jsonc and add "custom/weather".

    "modules-right": [
    "pulseaudio",
    "network",
    "custom/weather", // <-- Add this line here
    "clock"
],

Save your configuration file. If your Waybar is set to auto-reload, the weather should appear shortly! Otherwise manually restart Waybar.

Finally, update your CSS to space it out accordingly.

Troubleshooting Common Issues

If nothing shows up on your bar, don’t panic. It’s usually one of two very common mistakes made during configuration:

1. The Typo Trap

In Step 3, we named the module definition block "custom/weather". In Step 4, when adding it to the layout list, you must use that exact name.

A common mistake is typing "custom-weather" (with a dash) in the layout list instead of "custom/weather" (with a slash). Waybar won’t recognize the name with the dash and will display nothing.

2. The Incorrect File Path

If your script works manually in the terminal but not in Waybar, Waybar likely cannot find the file.

Double-check the "exec" line in your config. If your actual script lives in a specific dotfiles folder structure (e.g., ~/dotfiles/waybar/scripts/weather.sh), your config must point to that exact path, not the generic ~/.config/... path, unless you have symlinks set up correctly.
